Metal Panels
Select the kind of panel you are interested in from the dropdown menu

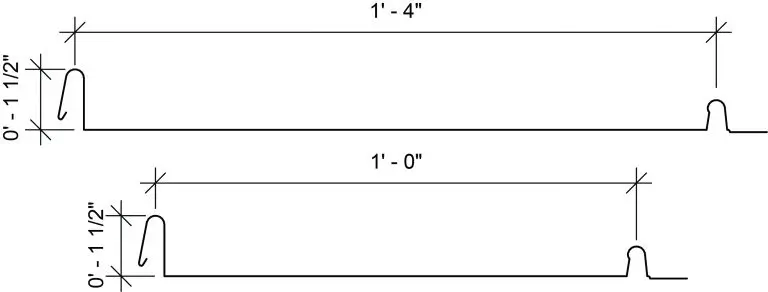

Standing Seam/Snap-Lock Panel
Flat Profile
Styrated Profile
Features
- 1-1/2″ rib height
- 12″ or 16″ panel width
- 28 color options
- Concealed fasteners
- Pre-notched panels (optional)
- Only available in 26 gauge
- Flat or Styrated profiles
- Vinyl masking applied to panel during production
- Complete line of trims available
Documents
G-Rib
Profile
Features
- Available in 29 & 26 gauge
- 22 flat colors & 8 textured colors
- 36″ coverage
- 9″ rib spacing
- 3/4″ rib height
- Cut to the 1/2″ inch
- CERAM-A-STAR 1050 40-year paint warranty
- AZ-50 Substrate for Painted Panels or AZ-55 Substrate for Galvalume Non-Painted Panels
- Anti-siphon leg ensures a weather-tight seal
Documents
R-Rib Commercial Panels
Profile
Features
- Available only in 26 gauge
- 22 flat colors
- Perforated panels available in Bright White
- 36″ coverage
- 12″ rib spacing
- 1 – 1/4″ rib height
- Cut to the 1/2″ inch
- CERAM-A-STAR 1050 40-year paint warranty
- AZ-50 Substrate for Painted Panels or AZ-55 Substrate for Galvalume Non-Painted Panels
- Anti-siphon leg ensures a weather tight seal
Documents
Board and Batten Siding Panel
Profile
Features
- 26 gauge
- 22 flat colors and 6 textured colors
- 10″ coverage
- 8″ rib spacing
- Flat or Embossed Wood Texture available
- 7/16″ rib height
- Cut to the 1/2″ inch
- CERAM-A-STAR 1050 paint system w/ 40-year paint warranty
- AZ-50 Substrate for Painted Panels or AZ-55 Substrate for Galvalume Non-Painted Panels
Documents
M-Rib
Profile
Features
- Available in 29 & 26 gauge
- 22 flat colors & 6 textured colors
- 36″ coverage
- 12″ rib spacing
- 3/4″ rib height
- Cut to the 1/2″ inch
- CERAM-A-STAR 1050 40-year paint warranty
- AZ-50 Substrate for Painted Panels or AZ-55 Substrate for Galvalume Non-Painted Panels
- Anti-siphon leg ensures a weather-tight seal
